EBS-6800P

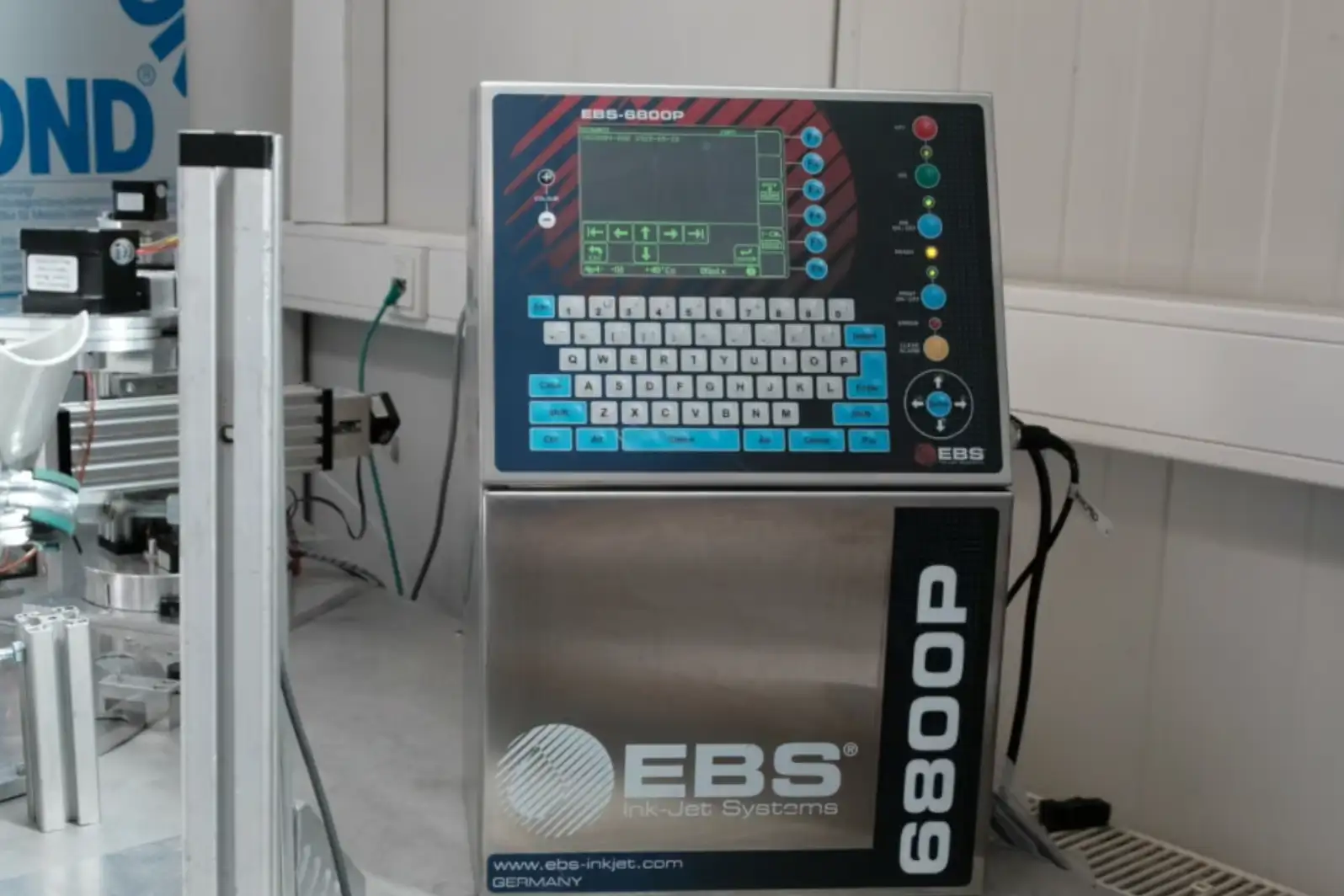

EBS-6800P is the name of our printer designed for pigmented inks. The printer is an industrial single-head inkjet printer designed for non-contact coding of moving objects on a factory conveyor belt with up to 500m/min (@ 5x5 matrix).

High constrast

The special field of our EBS-6800 is the processing of pigmented inks. These have the advantage that they are extremely rich in contrast and are very good visible on a wide variety of surfaces.

Degree of protection IP44 as standard

IP44 or IP54 - Protection of the housing against the ingress of water and coarse dust allows to ensure the reliability of the printer for a long time. The printer's keyboard and screen and all ports are protected against chemicals and water spray. (IP 54 optional available)

High Contrast

The pigment inks used in our printers, such as white or yellow ink, enable printing on a wide variety of dark substrates. Other inks, such as green or blue ink, produce high-contrast, opaque prints on all surfaces and are also suitable for multicolored substrates. With our expertise, you’ll find the right ink for every application.

Easy Maintenance

The EBS BOLTMARK II series is equipped with an integrated ink system that can be changed in 3 simple steps in less than a minute: Open the flap, remove the used iModule®, insert the new iModule® – done! No technician or tools required. The same applies to the quick change of ink and solvent bottles. No interruption of the printing process, no unscrewing of bottle caps, and no dirty fingers: Remove the used bottle, insert the new one—click!

Protection Class IP44 and IP54

The standard IP44 or optional IP54 protection rating of the housing against water ingress and coarse dust ensures the printer’s long-term reliability. The keyboard, display, and ports are protected against chemicals and splashing water. Remove the used bottle, insert the new one—click!

Custom Configuration

With optional upgrades such as various sensors, cables in different sizes, increased text memory, and much more, you can customize your printer to suit your specific application.

Parameters

Housing
stainless steel

Housing dimensions
• width 300 mm
• height 470 mm
• depth 211 mm

Printhead dimensions (straight diameter)
• Ø 40 mm; length 198 mm
• angular diameter Ø 40 mm; length 127 mm; height 130 mm

LCD dimensions
5.7" / 144.8 mm

Weight
about 13.8 kg without fluids

IP protection class (printer casing, excluding the printhead)
• IP44 (standard)
• IP54 (option)

Number of printheads 1

Printer position during printing
vertical

Printhead position during printing
any

Head cable
• head cable length 3 m

Distance from the printhead to an object
from 0 to 30 mm

Connections
• USB, current efficiency 300 mA
• ETHERNET
• PHOTO (photodetector input)
• SHAFT (shaft encoder input)
• optional connections (e.g. RS-232)

Terminal
a built-in terminal equipped with an air tight, splash proof, chemicals resistant alphanumerical keyboard and a big touch control LCD (touch screen)

Print release photodetector
(other detectors can be connected, if required by a user)

Timing of print columns
• internal generator
• shaft-encoder

Environment working temperature

• +5 to +40°C (from 41 to +104°F), for static operation
• +15 to +40°C (from +59 to +104°F) for dynamic operation
• relative humidity: up to 90% without condensation

Acceptable exposure to vibration and impacts

• vibration: max. 1g, max. 10 Hz
• shocks: max. 1g, max. 2 ms

Power supply

• supply voltage: 100–240 VAC, 50/60 Hz
• max. current consumption: 0.65 – 0.3 A

Compressed air
not required

Operation
no required inactive time, the device can run uninterruptedly for 24 hours

Print height
from 1.2 to 14 mm

Maximum dots
16 (optional 25 or 32)

Number of texts
• about 1000 (standard)
• about 2000 (option)

Graphics
• edited with graphics editor
• maximum height is determined by selected text profile

Types of subtexts
• CHARACTER STRINGS
• GRAPHICS
• BAR CODE
• TEXT NAME

Subtexts whose contents are:
– static
– dynamic (so-called special registers: counters, date, expiration date, time, shift identifier, external data, variable field, text contents)

Character matrices

• Latin:
5×5, 7×4, 7×5, 9×5, 9×7, 11×7, 12×6, 12×7, 14×9, 16×9, 16×10, 16×14, 21×15, 25×15, 32×18
and any combination of the above matrices can be used within the restrictions imposed by a selected text (including national characters: German, Polish, Danish, Spanish, Swedish, Turkish, Portuguese, Greek, Czech, Slovak)

• Cyrillic:
5×5, 7×6, 9×7, 12×7, 12×9, 16×10, 25×19, 32×24 (including Ukrainian, Kazakh characters)

• Arabic
• Armenian
• Japanese
• Chinese

Bar codes

• 1-dimensional (1D) codes:
Datalogic, Matrix, 2/5 5 Bars, 2/5 IATA, Interleaved, Code 39, EAN-8, EAN-13, EAN-13 + EAN5, UPC-A, UPC-A EBS, UPC-E, CODE 128, EAN-128, CODE 128B, ITF8, ITF14

• 2-dimensional (2D) code:
Data Matrix ECC-200 (option)

Maximum print rate for Speed = FAST printing parameter

• 2083 cps – 1 line 5×5
• 1890 cps – 2 lines 5×5
• 607 cps – 3 lines 5×5
• 809 cps – 4 lines 5×5
• 489 cps – 5 lines 5×5

• 1785 cps – 1 line 7×4
• 1247 cps – 2 lines 7×4
• 728 cps – 3 lines 7×4
• 792 cps – 4 lines 7×4

• 709 cps – 1 line 11×7
• 304 cps – 2 lines 11×7

• 312 cps – 1 line 16×9
• 76 cps – 1 line 25×15
• 31 cps – 1 line 32×18 (with 1 space row between characters)

Type of ink
pigment, based on methyl-ethyl ketone or ethanol

Ink color
multicolor, provided that ink of one type only is used

Note
the manufacturer reserves that the range of available features, options and printer parameters may vary and depend on the option you have negotiated
